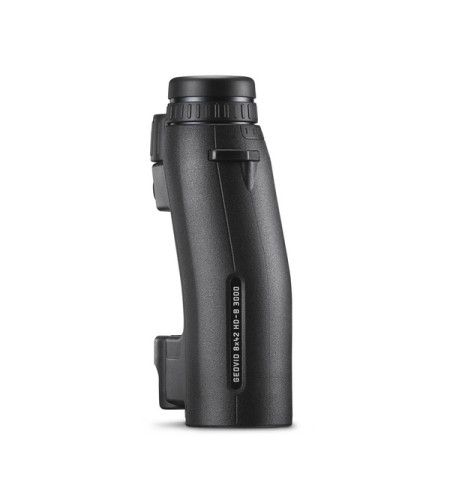

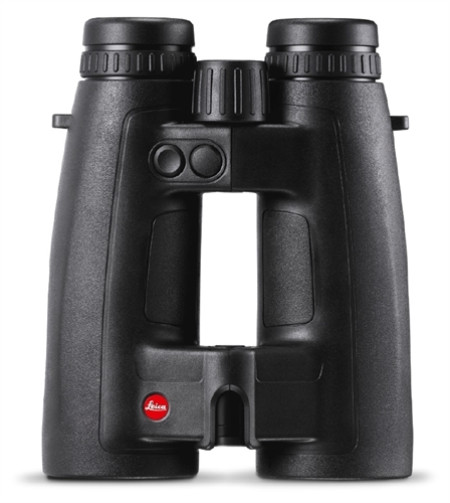

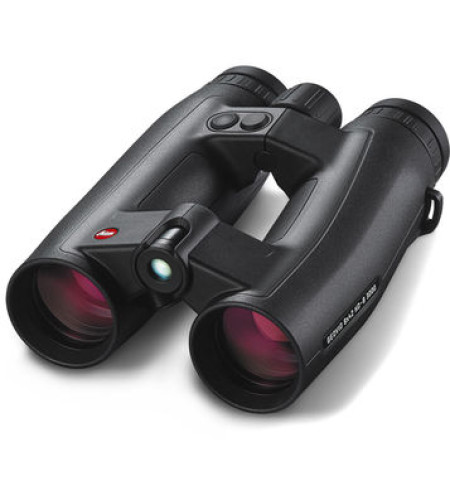

Binocular LEICA GEOVID 8X42 HD-B 3000

LEICA GEOVID 8X42 HD-B 3000

Leica 8x42 Geovid HD-B 3000 Rangefinder Binocular combines superior optical performance with a powerful 3000-yard laser rangefinder and ballistic computer into a highly portable and easy-to-use optic.

The range finding system integrates an inclinometer and ballistics computer with the powerful IR laser to improve first-shot accuracy. Its inclinometer measures the relative angle from the user to the target, then combines that with the linear range, to provide an adjusted distance to enable them to better judge the hold-over/-under. The addition of Leica's Advanced Ballistic Compensation system utilizes one of 12 pre-programmed ballistic curves based on common ammunition loads, combined with the adjusted range and environmental conditions, to further improve hold-over/-under accuracy. Users can also create custom curves on the Leica website and load them onto the Geovid, refining the precision even more. Hold-over/-under values can be displayed as the adjusted range, the relative angle, or in MOA/Mils to enable fast click adjustments to riflescope turrets.

Leica HD-B 3000 8 X 42 Specs

Prism Type Perger Porro

Magnification 8x

Objective Lens Diameter 42mm

Angle of View 8.1, actual

Field of View 426' @ 1000 yd / 142 m @ 1000 m

Minimum Focus Distance 16.5' / 5.0 m

Exit Pupil Diameter 5.25 mm

Eye Relief 18 mm

Interpupillary Adjustment Not specified by manufacturer

Dioptric Correction ±4

Focus Type Center

Tripod Mount None

Laser Type FDA Class 1 eye-safe IR

Metering Range 10 - 3000 yd / 10 - 2743 m

Metering Accuracy ± 1 yd / m: 10 - 547 yd / 10 - 500 m

± 2 yd / m: 547 - 1094 yd / 500 - 1000 m

± 0.5 %: beyond 1094 yd / 1000 m

Power Source 1 x CR2 lithium battery
