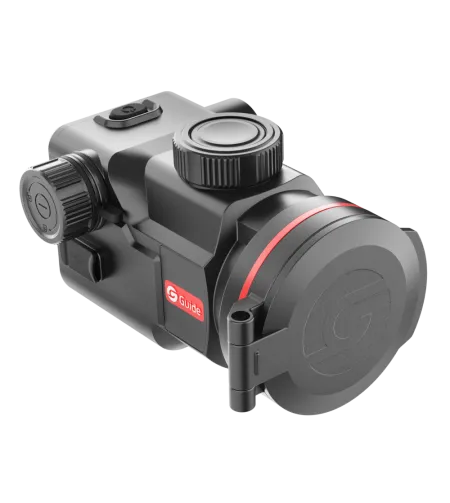

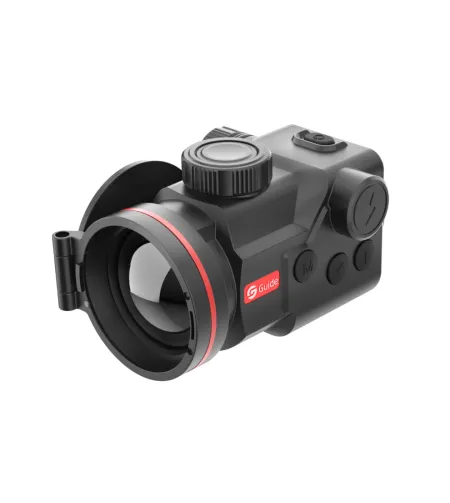

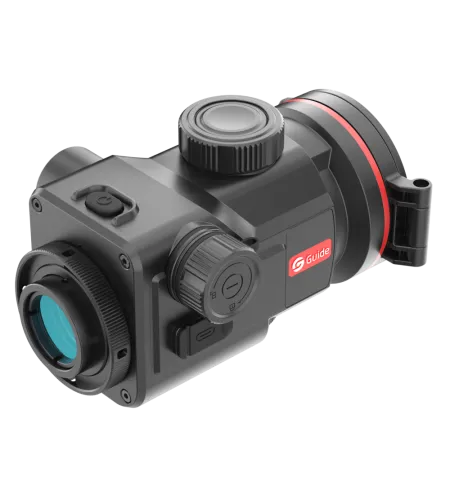

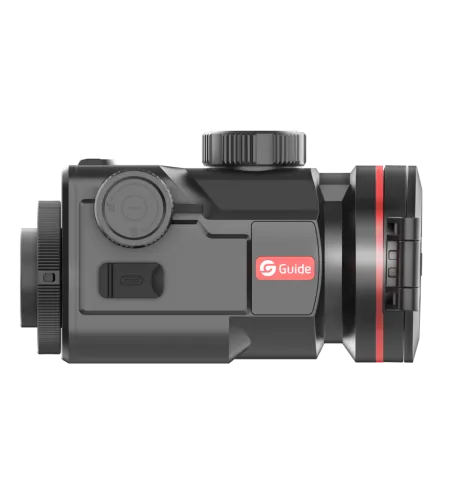

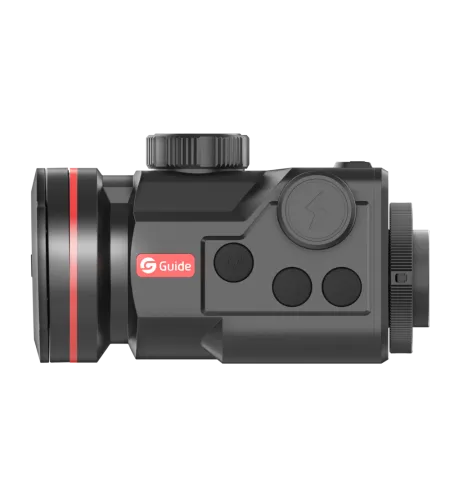

Guide TB650 2.0 Optical Sight Attachment

Shutterless Image Calibration
G-Zero shutterless calibration provides a truly seamless viewing experience at power-up, eliminating image stutter that could lead to missed targets or critical moments during aiming. It also reduces shutter calibration noise, ensuring quiet and uninterrupted operation.
Note: The shutter module has been retained to ensure high image quality during power-up and under wide temperature fluctuations. 1. zero shutter true shutterless
Brighter image with Hyper-Light AI algorithm The AI-based Hyper-Light algorithm, combined with a sensitive thermal sensor, allows you to see even distant objects clearly. This AI algorithm reduces image noise, enhances contrast, and enhances details, so animals or objects can be identified faster and more accurately, regardless of weather conditions.
2. hyper light algorithm smarter clarity
Long runtime For convenient use, the TB 2.0 series uses standard 18650 batteries, which are easy to replace and charge. Low power consumption ensures longer runtime, one battery lasts up to 5 hours. These standard 18650 batteries are also compatible with other GUIDE devices.
3. standard 18650 extended runtime
Precise operation The GUIDE TB650 2.0 is compatible with daytime scopes up to 15x magnification, ensuring accurate shooting and reliable operation in all conditions. The TB 2.0 series is characterized by exceptional (1.22cm @ 100m) accuracy, guaranteeing a fast and accurate shooting process.
4. ultra precise zeroing 15x optics ready
64GB memory and virtual reticle GUIDE TB650 2.0 with 64GB internal memory for photos and videos. Recorded files can be viewed, shared and analyzed directly on the device, quickly evaluate results and improve skills. In addition, TB 2.0 attachments can superimpose a reticle on recorded videos, simulating real-life situations and providing an authentic experience for video viewing and sharing.
7. virtual reticle local album viewing
Compact size and lightweight GUIDE TB650 2.0 weighs only 480-490g and measures 144 × 86 × 79mm. The compact design ensures comfortable use and easy handling even during long observations.
8. lightweight. balanced comfortable handling
Specifications Model TB650 2.0
Sensor
Type: Uncooled VOx infrared detector, 8–14 μm Resolution: 640×512 @12 μm NETD: 18 mK Frame rate: 50 Hz Lens
Lens: 50 mm, F1.0 Angle of view: 8.8°×6.6° Field of view at 100 m: 15×11 m Magnification: 1× Detection range: 2600 m Focus: Manual Display
Display type: 0.39″ AMOLED 1920×1080 Color palettes: White-hot, Black-hot, Red-hot, Green-hot, Iron red, Blue-hot, Sepia Eyepiece: Eye relief – 20 mm Hardware Wi-Fi: 2.4G, 5G Interface: USB-C (power supply / USB2.0) Other: Microphone, Bluetooth System Recording function: Photos / Videos (with audio recording) Memory: 64 GB Power Battery: One replaceable 18650 battery Operating time: 5 hours Environmental conditions
Operating temperature: -20°C – +50°C / -4°F – +122°F Shock resistance: 6000 J Waterproof: IP68 Physical parameters
Weight: 480 g / 16.93 oz Dimensions: 144×86×79 mm / 5.67×3.39×3.11 in Package
Device, 18650 battery ×2, battery charger, USB-A to USB-C cable, quick start guide, warranty card Optional accessories
Bluetooth remote control, adapter ring, 18650 battery
