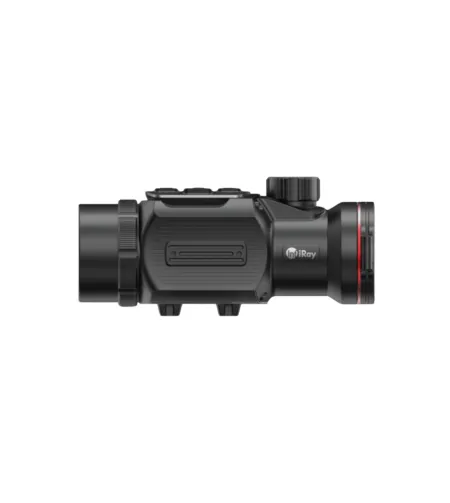

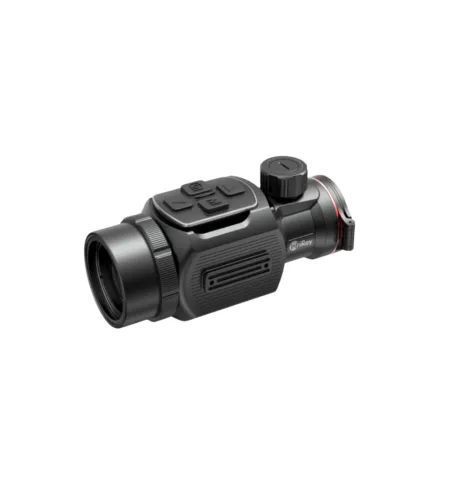

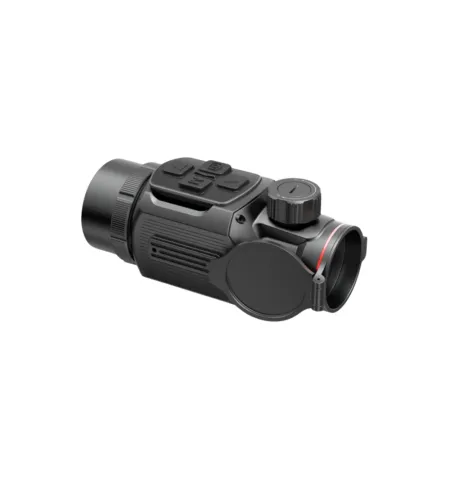

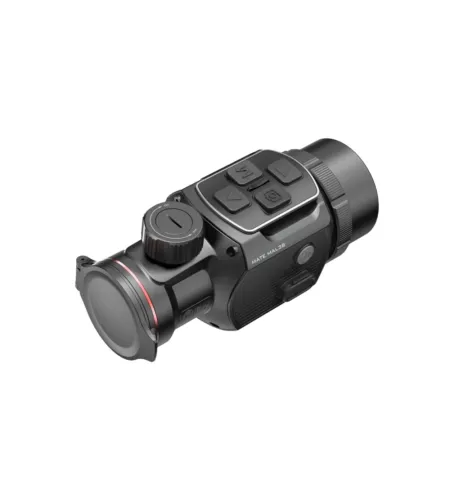

InfiRay MAL38 Clip-on

High image quality The InfiRay MAL38 attachment features excellent image resolution and can be combined even with high-magnification scopes. With 30 mK NETD, thermal sensitivity, 384×288 resolution and a 38 mm objective lens, the InfiRay MAL38 provides high-quality images and can detect objects at a distance of up to 1948 meters.
Wireless remote control and additional batteries The InfiRay MAL38 attachment comes with a convenient wireless remote control, which provides high comfort when using the attachment. Control becomes simpler and more convenient, you can easily attach the remote control to any convenient place on the weapon to control the attachment quickly and efficiently. The MAL38 series receivers are now supplied with two additional UPS-6 batteries, which extend the receiver's operating time to 4 hours. The batteries are easily attached to the remote control. Practicality and durability InfiRay MAL38 is made of magnesium alloy, which reduces the weight of the device by 50% and increases the strength of the structure by 60%. This ensures the resistance of the device to strong impacts and recoil, making it reliable even with intensive use. The attachment has an IP67 protection class, so it is resistant to moisture, splashes of water, dust and dirt. This allows you to use it in any weather conditions. Ultra-clear function The mode is designed to improve the image in bad weather, such as heavy fog or rain. The mode increases the detail of the device, emphasizes the warmth, improves the contours of the radiating object.
Shooting and photography MAL38 allows you to not only see clearly in the dark, but also save impressive images. You can capture the observed images or capture moments. Built-in internal memory 32 GB. The built-in Wi-Fi module supports real-time video transmission.
Rangefinder. The optional InfiRay ILR-1200-2 Rangefinder allows you to determine the exact distance to the target, max. 1200±1m. This rangefinder can also act as an additional power source for charging Mate series accessories. The rangefinder has a replaceable 18650 battery, which can be used as an additional power source, extending the operating time of the Mate device up to 5 hours. The scope is not included. Eyepiece. The optional MAL38 is a universal device that can be used as an attachment and as a monocular. The device can be used as a monocular only with the help of an eyepiece. The eyepiece is not included.


Specifications:

• Model MATE MAL38
• Resolution 384 × 288
• Pixel size, µm 12
• Thermal sensitivity (NETD), µm ≤30
• Frame rate, Hz 50
• Objective, mm 38
• It is recommended to use an optical sight. G1/G2: 1 – 5G3/G4: 6 – 8
• Field of view (FOV), ° 7.0 × 5.3 /12.3 × 9.2
• zoom in As an attachment: ×1 As a monocular: ×1/×2/×4
• Detection distance, m (with target size 1.7×0.5 m, P(n) = 99%) 1948
• Screen resolution 1024 × 768
• Battery life (t=24°С), h Additional operating time (after connecting the connected external battery) (t=24°С), h 4.5
• 7.5
• Adaptation to ambient light Forest, plains, city modes
• safety class IP67
• Color palette White hot, black hot, red hot, color
• Weight, g ≤520
• Size, mm × × 138 62 71
• Interface Type-C
• Aiming point, MOA 1
