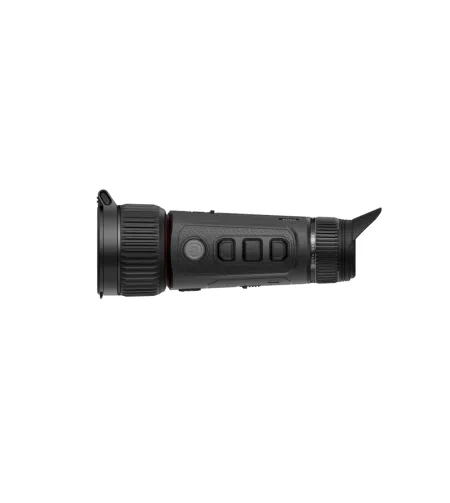

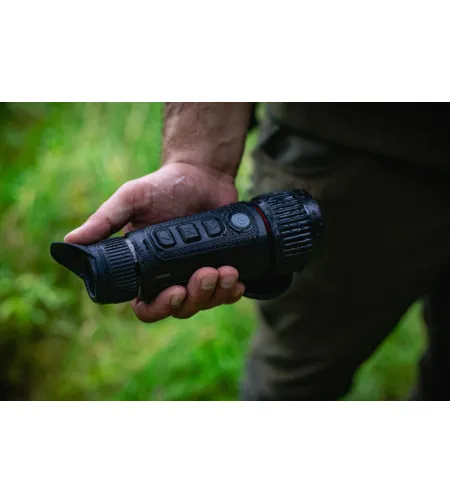

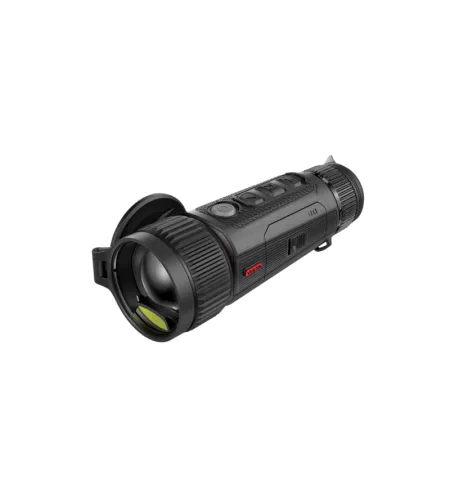

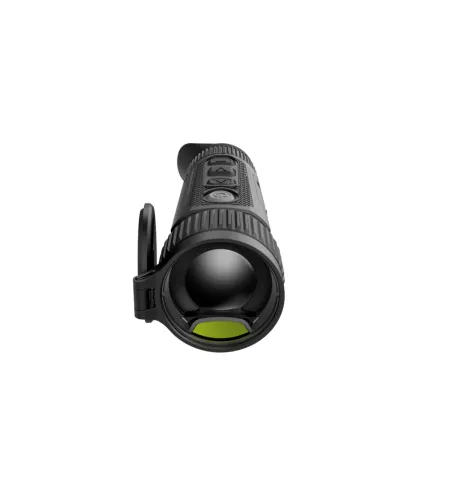

Nocpix VISTA H50R thermal imager

The VISTA H50R thermal imager is the latest InfiRay premium quality thermal imager from the Nocpix series. This top-of-the-line line features advanced technology that guarantees unparalleled image accuracy and clarity even in the most challenging conditions.

Premium quality line Nocpix The VISTA H50R thermal imager is the latest InfiRay premium quality thermal imager from the Nocpix series. This top-of-the-line line features advanced technology that guarantees unparalleled image accuracy and clarity even in the most challenging conditions.

The highest image quality Nocpix VISTA H50R ensures exceptional image quality based on the latest technology. With a 640×512 sensor, 12 μm pixel size, NETD ≤15 mK thermal sensitivity, this thermal imager captures extremely detailed images even with minimal temperature differences. The thermal imager guarantees an extremely clear and bright image in the most difficult conditions. The frame rate of 60 Hz ensures smooth image transmission, allows you to maintain image clarity and stability while watching even fast-moving objects.
HD 2560×2560 AMOLED screen The HD 2560×2560 AMOLED screen provides unparalleled image quality and accuracy. Thanks to the ultra-high resolution, this screen conveys detailed and sharp images, which is extremely important when observing small details or complex objects. AMOLED technology is also characterized by rich colors, a high level of contrast, and ensures a clear image both during the day and at night. The screen is not only durable, but also energy-saving, which allows you to use the device longer without compromising image quality. Image processing with Vision+ The transmitted image has never been so clear - with Vision+ technology, the thermal imager stands out with unparalleled image quality, providing detail and clarity even in the most difficult conditions. This technology provides extreme detail, sharpness and a wider field of view, allowing the user to see a clearer, richer image. The integrated Pure Vision Mode increases image quality and contrast in difficult environmental conditions, making objects more visible, even in extremely bad weather conditions.
Built-in rangefinder and detection capabilities Nocpix VISTA H50R with an integrated laser rangefinder built directly into the lens, which allows you to quickly and accurately determine the distance to the target. The maximum measuring distance is up to 1200 m. This feature is especially useful when you need to make quick decisions when hunting. The 50mm lens provides a wide field of view and a high level of detail even at long distances. This lens enables effective detection and analysis of objects even at long distances, providing detailed and clear information about the observed targets. Detection distance up to 2600 meters.

The light transmission of the lens The F0.9 lens transmits 20% more light compared to a regular F1.0 lens, making the images transmitted by the Nocpix Vista series thermal imagers even brighter and clearer.
Wide field of view Field of view 8.8×7.0° / 15×12° allows you to better understand your surroundings. 8.8×7.0° is the angle you see through the device at higher zoom. This narrower but more detailed view allows you to focus on specific objects or targets, giving you more detailed information about them. 15×12° is the angle you see at lower zoom. This wider field of vision allows you to look at a larger area of ​​your environment, helping you better understand what's going on around you and appreciate the wider context. Protection class IP67 The device is completely dust-proof and completely waterproof, even when submerged up to 1 meter deep for up to 30 minutes. This ensures that the Nocpix VISTA H50R can withstand a variety of weather conditions, including rain, snow, and mud, as well as being water-resistant, allowing it to be used even in the most extreme conditions.

Silent buttons Silent buttons are specially designed to improve user experience and functionality in various situations. These buttons are silent, making them perfect for when you need to keep quiet, such as when hunting. This helps to avoid disturbances and does not make noise that could scare the animals. In addition, the silent buttons are resistant to dust and water, which increases the durability and reliability of the device, ensuring its reliable operation even in extreme conditions.
Reality+ Technology The new Nocpix VISTA H50R thermal imager is made with Reality+ technology. This technology removes "image noise", increases image contrast and highlights details, creating a much sharper and clearer thermal image. This technology results in significantly higher and superior image quality.




Specifications


Model Nocpix VISTA H50R Resolution 640 × 512 Pixel size, μm 12 Thermal sensitivity NETD, mK ≤15 Frame rate, Hz 60 Lens, mm 50 F0.9 Field of view, ° 8.8 × 7.0
/ 15 × 12 zooming in 4 ~ 40 Detection distance 2600 Dioptres -4 ~ + 6 Ekranas AMOLED 2560×2560 Battery capacity 4400 mAh Max. operating time, (t=22°C) hours 5,5 Sound recording taip Memory capacity, GB 64 security class IP67 Safety class for the laser Class 1 Max. range finder distance, m 1200 Operating temperature, °C -20 to +50 Weight, g (with battery) 650 Size, mm 194 70 82
