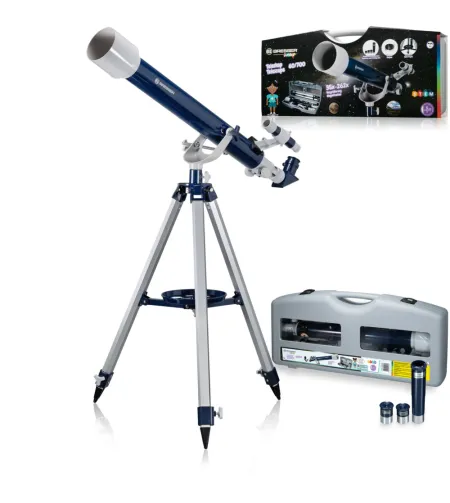

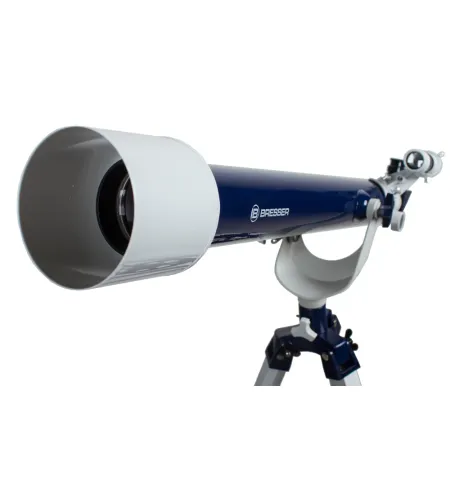

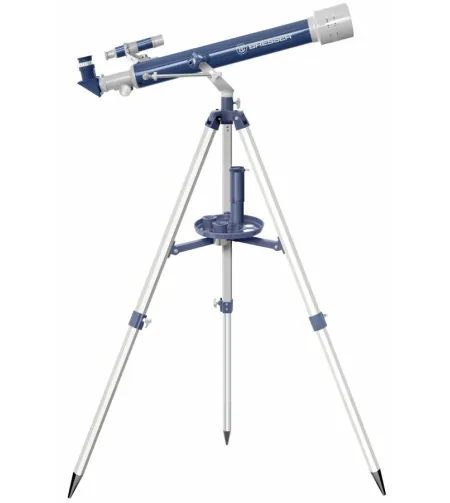

BRESSER JUNIOR 60/700 AZ1 Refractor Telescope

Would you like to go on a night walk and experience something out of this world? With a lens aperture of 60 mm this 60/700 refractor telescope already collects about 30 percent more light than a telescope with 50 mm aperture. The 60/700 already allows for higher magnifications – ideal to investigate in details like lunar craters. An additional finder scope mounted on the telescope makes it easier to locate objects in the sky. With the erecting eyepiece even during the day many exciting things in the surrounding can be observed. Due to the height adjustable tripod, the telescope can be brought to the right height for small or tall observers. The supplied diagonal mirror ensures comfortable viewing.

Field of Application: At night the moon and planets like Saturn and Jupiter may be explored. But also impressive sparkling star clusters like the Pleiades impress young and old stargazers. With the included erecting prism it is possible to get an unreversed, upright image, for example, for observation of nature during the day.

Special features: Ultra light: The complete instrument with tripod weighs less than 2 kg! Thus, it can also be set up by young researchers themselves, at any time on the balcony or in the garden.

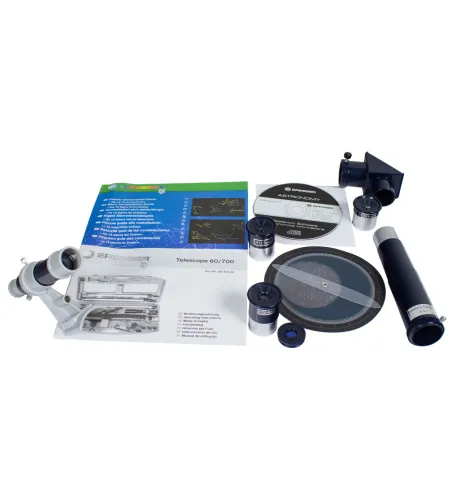

SCOPE OF DELIVERY

• Refractor telescope 60/700
• Allt-azimuth mount (left/right and up/down)
• Continuously height adjustable aluminium tripod

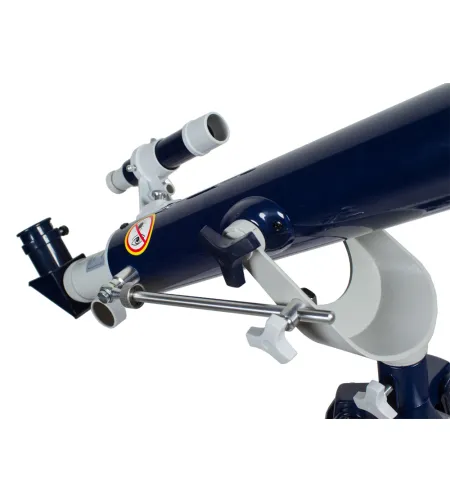

• 5x24 finder scope
• 90° diagonal mirror
• Three eyepieces: 4 mm (175x magnification), 12.5 mm (56x magnification) and 20 mm (35x magnification)
• 1.5x errecting lens for laterally correct and upright image
• Pocket compass

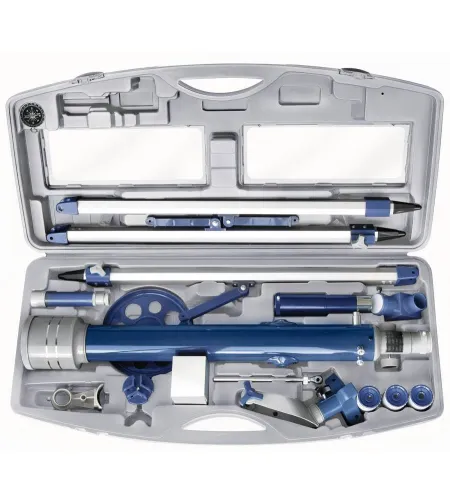

• Hard carrying case

Technical Data

FIELD OF APPLICATION
Field of application	Land observation Lunar observation Planetary observation
FOCUS GROUP
Focus Group	Beginners
PRODUCT FAMILY
Product Family	Refractor telescope
OPTICAL SPECIFICATIONS
Optical design	Achromatic Refractor
Magnification from	35
Magnification up to	262
Maximum recommended magnification	120
Mirror/Lens diam.	60 mm
Focal length	700 mm
Aperture ratio	11.6
Angular resolution	2.2 arc seconds
Finderscope	5 x 24 mm
Mount Type	Azimutal
GENERAL TECHNICAL DATA
Material tripod3	Aluminium / plastic
Transportability	good
Dust protection caps	Dust protection caps for front lens and eyepiece holder
Extended warranty	5 years
DIMENSIONS & WEIGHTS
Net weight OTA (incl. accessories)	0.6 kg
Total length	69 cm
Total width	9.8 cm
Total height	9 cm
Tube diameter	90 mm
Tube length	680 mm
Height (cm) from	67
Height (cm) up to	120
Tripod height adjustment	✓
Net Weight total (incl. accessories)	5.1 kg
Eyepiece Barrel Diameter	31.7 mm
